Creating a router template is the fastest way to turn complex shapes into repeatable, professional results. Whether you need identical furniture legs or precise guitar cavities, learning how to make a router template ensures every cut matches your design exactly without guesswork.
This guide reveals the exact materials, scoring methods, and routing techniques pros use to build durable jigs. You will discover how to select the right board, execute high-precision cuts, and avoid common errors that ruin workpieces.
Select the Best Material for Your Router Template
Choosing the right stock determines how long your jig lasts and how smooth your cuts feel. 1/4″ MDF is the top choice for most projects because it is flat, stable, and free of grain that could cause inconsistencies. For heavy-use guides that must withstand hundreds of passes, upgrade to 1/4″ acrylic for superior durability and a slick surface.
If your project requires side clamping holes for tapered legs, use 19mm MDF to prevent blowout. Avoid 3/4″ solid wood or particleboard, as these materials are difficult to sand smooth and prone to chipping under the router bearing.
Seal Your Template for Smooth Operation
Unsealed MDF absorbs moisture and allows double-sided tape to lift fibers during removal. Apply a coat of shellac, varnish, or lacquer to create a hard, slick surface. This simple step prevents fiber lifting, makes cleanup easier, and allows the router bearing to glide effortlessly.
Execute the Classic Cut-and-Sand Method
This traditional approach works well for simple shapes and requires basic tools like a saw and sander. It is an excellent starting point for anyone learning how to make a router template without specialized jigs.
Transfer and Rough Cut Your Pattern
Trace your design onto the blank using a black fine-tipped marker for maximum visibility. If using a paper pattern, apply light spray mount adhesive and align edges carefully before cutting. Use a fence-guided saw for straight lines or a band saw for curves, staying just outside your layout line.
Refine Edges with a Spindle Sander
Mount the largest drum possible on your spindle sander to minimize divots on large curves. Apply light, even pressure while keeping the template moving constantly to avoid creating flat spots. Finish by hand-sanding tight corners with sticks wrapped in 80 to 220 grit paper for a glass-smooth edge.
Master the High-Precision Scoring Technique
The scoring method, developed by Swedish woodworker T (Findus), offers exceptional accuracy without complex jigs. This technique defines the final edge using partial-depth cuts before removing the bulk waste.
Score Inside Layout Lines
Draw your shape edge-to-edge on the template material to maintain reference points. Make partial cuts 5–6 mm deep strictly inside the lines using a table saw or track saw. This creates a defined groove for the router bearing to follow later.
Remove Waste and Shape Final Edge
Drill out internal corners with a bit that fits within your scored groove to prevent tear-out. Use a jigsaw for closed shapes or a band saw for open templates to remove the bulk waste. Mount a bottom-bearing flush trim bit in your router table and let the bearing follow the scored groove to finish the shape.
Critical Rule: Ensure your router bit radius is larger than the groove width to avoid creating stepped corners.
Handle Large Radii and Hybrid Cuts
Standard router bits often struggle with corner radii larger than their own diameter. When your design requires a large radius, such as 50 mm, you need a hybrid approach to maintain accuracy.
Drill and Chisel Large Curves
Start by drilling a large hole at the corner to establish the primary arc. Make a partial cut on the table saw just inside the hole and use tape shims to test tangency until the cut blends perfectly. Clean up the final transition between the straight cut and the arc using a chisel and sandpaper.
Build Templates Using 3D Printing
Complex or asymmetrical shapes like cutting board handles are ideal candidates for digital design and 3D printing. This method allows you to create custom geometries that are difficult to achieve with subtractive methods.
Design and Print Custom Shapes
Use Fusion 360 or SketchUp to model your template with thin, flat geometry to reduce print time. Include alignment pins or tabs in your design to ensure the template sits securely on the workpiece. Print your design on an entry-level printer like the Ender 3 V2, noting that complex jigs may take several hours.
Assemble and Upgrade for Durability
For large templates, print sections separately and join them on the workpiece using high-strength double-sided tape. Since 3D printed corners can wear down with repeated bearing contact, use the print as a layout guide to create a permanent version in acrylic or MDF.
Route Thick Stock with Double-Bearing Bits
Standard bits often lack the cutting length needed for thick stock like 2″ bench legs. A long double-bearing flush trim bit solves this problem by allowing you to cut in two distinct passes.
Perform Two-Pass Cutting Strategy
For the first pass, remove the top bearing and mount the template face down. Raise the bit so only the bottom bearing contacts the template and cut counterclockwise to remove the bulk of the waste. Flip the workpiece so the remaining waste is on the bottom, reinstall the top bearing, and make a second pass to clean up the rest.
Prevent Tear-Out and Manage Grain Direction
Cutting against the grain causes ugly tear-out that ruins the surface of your workpiece. Proper technique and tool selection are essential to maintaining a clean cut regardless of wood figure.
Optimize Cutting Direction
Use double-sided tape instead of clamps to allow flexibility in routing direction. This lets you rotate the workpiece to always cut with the grain. When grain direction changes across a piece, use a double-bearing bit to flip the workpiece and adjust your cutting path accordingly.

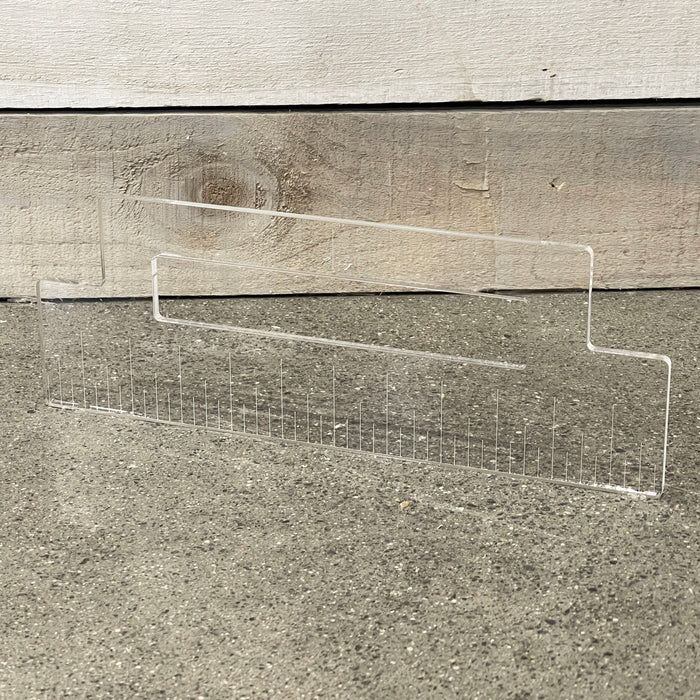

Create Pull Grips and Rectangular Openings
Rectangular holes present a unique challenge because router bits naturally create rounded corners. Specific steps are required to achieve clean, functional openings for drawer pulls or electronics.
Score and Drill Before Routing
Score inside all four lines of your rectangle with a saw and drill corners into the grooves to eliminate stress points. Use a 10 mm straight bit to remove 90% of the waste at near-full depth before switching to your final pull grip bit. This extends bit life and gives you better control over the final shape.
Label Templates for Future Use
Mark every template with the pull size, guide bushing, depth, and bit type used. Storing this information directly on the jig turns a one-time project into a long-term asset for your workshop.
Build Tapered Furniture Bases
Tapered legs require thick templates to accommodate side-access clamping holes without breaking through the material. Using 19mm MDF provides the necessary strength for this application.
Layout and Score Tapers Precisely
Draw the bottom baseline, back baseline, and centerline on your stock before laying out the taper angle with a protractor. Use a track saw with a guide rail to score the taper, utilizing its visibility and stop capability to prevent overcutting. When routing, place the workpiece on the back side of the template to preserve the unbroken radius edge.
Craft Guitar Pickup Cavities
Guitar building requires extreme precision to ensure pickups fit snugly within the body. Templates allow you to replicate exact mounting plate dimensions repeatedly.
Trace and Cut with Clearance
Use the actual pickup mounting plate as your pattern and trace it with a 1/32″ offset for a snug fit. Drill pilot holes in the corners and cut just outside the line with a scroll saw. Refine the edges with files and sanding sticks until the fit is perfect.
Secure Template for Plunge Routing
Attach the template using low-tack masking tape and CA glue for a strong but removable bond. Since the guitar lid may be attached, treat your router as a plunge tool and make multiple light passes. Hand-chisel the corners to 90 degrees only if necessary, as the trim ring usually hides the natural radius.
Cut Electronics and Clock Face Recesses
Battery compartments and clock faces benefit from the same MDF template and bearing-guided routing principles. Accuracy is paramount here to ensure components fit without gaps or pressure.
Apply Precision Principles to Small Cuts
Use spray mount to attach paper patterns for small electronic recesses. Cut with a flush trim bit and label the template with the project name and bit type. Always store these small templates flat to prevent warping, which can ruin the alignment of tight-fitting parts.
Align and Secure Templates Properly
Proper alignment ensures your cut matches your layout exactly. Misalignment leads to asymmetrical parts and wasted material.
Use Centerlines and Reference Edges
Mark centerlines on both the template and workpiece to ensure symmetry during setup. For repeatable batches, attach a fixed straight strip to the workpiece as a stop. For ultimate precision, rout a shallow groove in the reference edge and align it against your router table fence.
Drill Side-Access Clamping Holes
Drill 12 mm holes from the side of the template using a depth stop to allow clamp access without obstructing the router path. Choose between clamping on the smooth face for a better bearing surface or the grooved face for full corner support depending on your needs.
Secure with Tape, Glue, or Clamps
The method you use to hold the template affects both safety and cut quality. Different projects require different levels of holding power.
- Double-sided tape: Best for flat, lightweight templates where you need to change routing direction.
- Painter’s tape plus CA glue: Ideal for heavy-duty holding or vertical work surfaces.
- Clamps: Use when side holes are present or for thick stock requiring maximum stability.
Prevent Common Template Mistakes
Avoiding simple errors saves time and materials. Most mistakes stem from incorrect bit selection or poor preparation of the template surface.
Avoid Corner Steps and Fiber Lifting
A router bit radius smaller than the scoring groove width causes visible “steps” at corners. Always verify that the bit radius is larger than the groove width before cutting. Additionally, seal MDF templates with shellac to prevent tape from lifting fibers and ruining the smooth edge.
Stop Tear-Out with Proper Technique
Cutting against the grain is the primary cause of tear-out. Always cut counterclockwise when possible and use double-sided tape to flip the workpiece if grain direction changes. If you need sharp 90-degree corners, remember to hand-chisel them after routing since bearing bits create radii.
Maintain and Store Templates
Proper maintenance extends the life of your jigs and ensures consistent results over time. Regular inspection catches wear before it affects your work.
Inspect and Label for Longevity
Check contact points on wooden or 3D printed templates for rounding or grooves. Write the project name, bit size, depth, and date on the back of every template. Store them flat and labeled side up in a dry area to prevent warping.
Test on Scrap First
Always run a test cut on scrap material before routing your final piece. This simple step catches alignment, depth, or bit issues early and prevents costly mistakes on your main project.
Frequently Asked Questions About Router Templates
What is the best material for making a router template?
1/4″ MDF is the best all-around material because it is flat, stable, and easy to sand. For high-use applications requiring extreme durability, 1/4″ acrylic is the superior choice.
How do I prevent tear-out when routing with a template?
Use double-sided tape to allow flexible routing directions so you can cut with the grain. You can also use double-bearing bits to flip the workpiece and maintain a favorable cutting angle.
Why do my routed corners have steps when using the scoring method?
Steps occur when the router bit radius is smaller than the scoring groove width. Ensure your bit radius is larger than the groove to create a smooth, continuous corner.
Can I use 3D printed templates for routing?
Yes, 3D printed templates work well for complex shapes and prototyping. However, the corners may wear down over time, so consider using them to layout a permanent MDF or acrylic version.
How do I get sharp 90-degree corners with a round router bit?
Router bits with bearings naturally create rounded corners. To achieve sharp 90-degree angles, you must hand-chisel the corners after the initial routing pass is complete.
Key Takeaways for Making a Router Template
Learning how to make a router template transforms your woodworking by ensuring consistency and precision across multiple projects. By selecting the right material like 1/4″ MDF or acrylic and using techniques like the scoring method, you can create durable jigs that last for years. Remember to seal your templates, verify bit sizes to avoid corner steps, and always test on scrap wood first.
Start your next project by choosing the method that fits your tools and accuracy needs. Build a library of labeled templates to save time on future builds and elevate the quality of your craftsmanship immediately.
